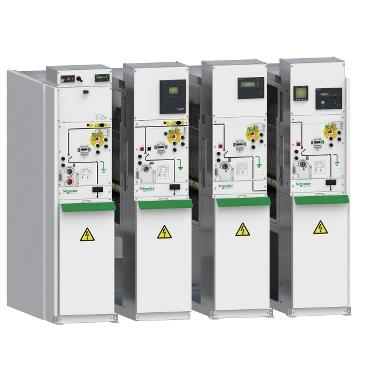

Premset

Range composed of compact, smart, and modular units with a voltage rating of up to 17.5 kV, earth-shielded solid, and easily adaptable to specific requirements:
• Circuit breaker and switch-disconnector using vacuum technology
• Rated PF withstands voltage: 42/48 kV 1mn
• Rated BIL withstands voltage: 95/110 kV
• Rated busbar current: 630A and 1250A
• Rated max short-time withstand current: 25 kA x 3s
• Cable earthing switch: 25 kA, M0, E2
• Degree of protection: IP3X
• Dimensions W x H x D (mm): 375 x 1550 x 910

Functional units:
• 3 switches
• I06T and I06H, I12H
• 5 circuit-breakers: D01N, D02N, D06N, D06H, D12H
• 4 metering units: M06S, M06A, M12S, M12A
• Technology: Shielded Solid Insulation
• Standard: IEC
